This versatile family of ergonomically engineered

fastening tools features self-contained hydraulics for

high capacity and low investment cost.

Connected to an air supply of suitable capacity,

they’ll deliver up to 35 installations per minute. All with

uniform strength and clamping force. That’s because

HUCK pneudraulic tools for aerospace fasteners boast

the highest power-to-weight ratios in their class.

Comfortable grips, low-effort trigger action, and

light weight reduce operator fatigue. Noise levels of

only 75 dBA or below help reduce factory noise. What’s

more, these tools are so simple to operate they’re

mastered in minimal time.

Durability and dependability? They’re standard with

every HUCK tool, thanks to life-extending features like

chrome plated piston rods. And our innovative designs

incorporate few moving parts — making high reliability

and easy serviceability traits you can count on.

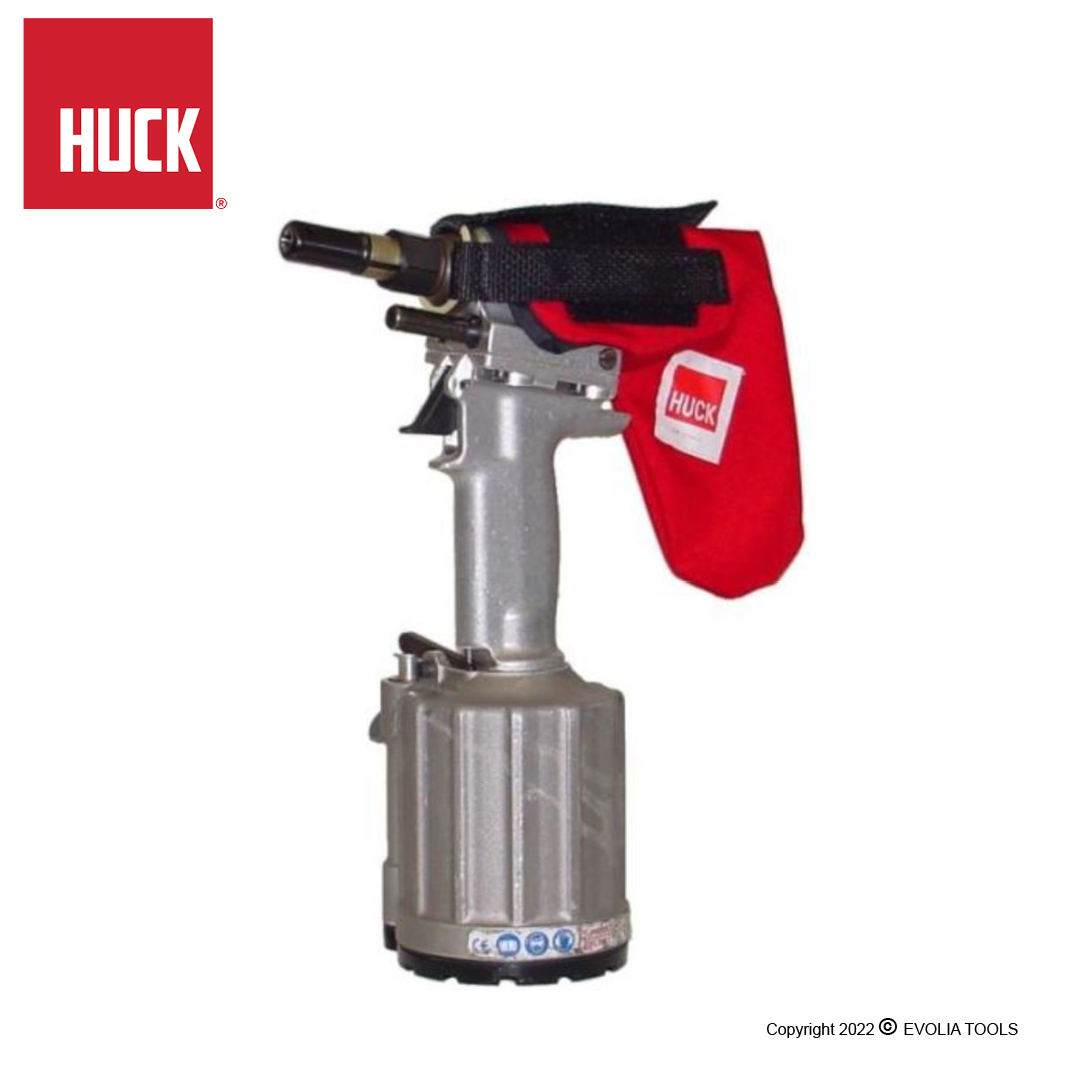

244X, Pneudraulic Installation Tools, Huck, Tools (Huck),

Power Source : 90 psi Shop Air,

Hydraulic Fluid : Automatic Transmission Fluid meeting DEXRON III; DEXRON VI; MERCON; Allison C-4 or equivalent,

Flow Rate : 6.3 scfm (178 lpm),

Operating Temperature : 32 to 125 Deg F (0 to 51.7 Deg C),

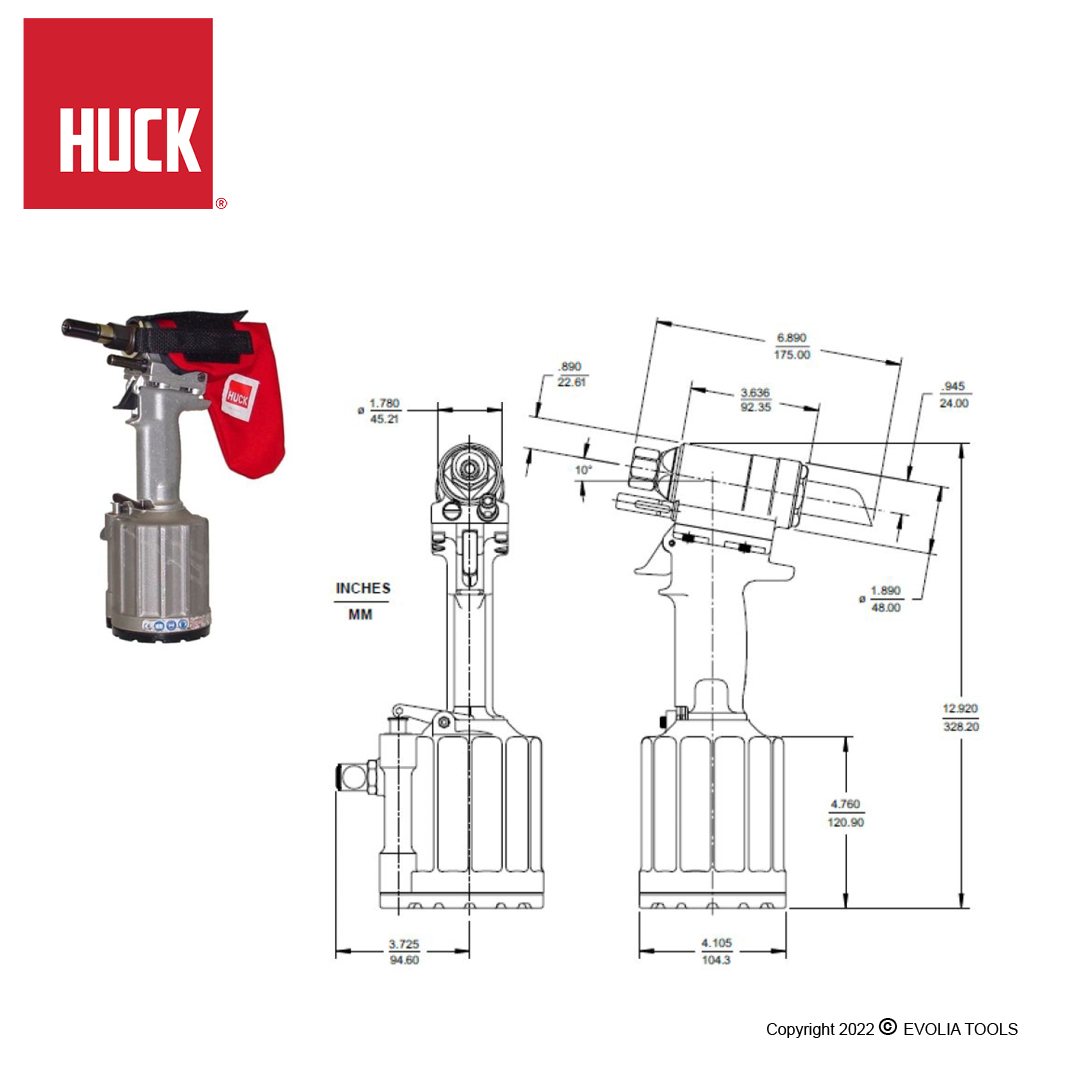

Fastener Type : 3/16 Inch; 1/4 Inch, Width of Head : 1.779 Inch (45.19mm),

Length of Head : 6.890 Inch (175.01mm),

Speed/Cycles : 30 per min,

Noise Level : 75dB(A) at 90 psi,

Cylinder Diameter : 4.105 Inch (104.26mm),

Air Pressure : 90 psi (6.20 bar),

Center to Edge : 0.890 Inch (22.61mm),

Includes : Stainless Steel Sleeves in Both Head & Handle Assembly;49kN at 6.2 bar),

Weight : 8.350000

The 243, 244, and 244OS tools are being retired from production

and superseded by the 244X and 244OSX models. Any existing

tools will continue to be supported until January 1, 2017. It is

strongly suggested that spare parts for existing 243, 244, and

244OS tools be ordered and kept on hand.

The new generation of these lightweight, compact tools, 244X

and 244OSX, offer fi eld-serviceable stainless steel sleeves in both

the head and handle, better component wear life, and reduced

maintenance downtime. Additionally, with an upgraded internal

relief valve, debris-preventing throttle arm guard, and capability of 9/16 inch stroke, the new 244X and 244OSX will significantly outperform their predecessors.
