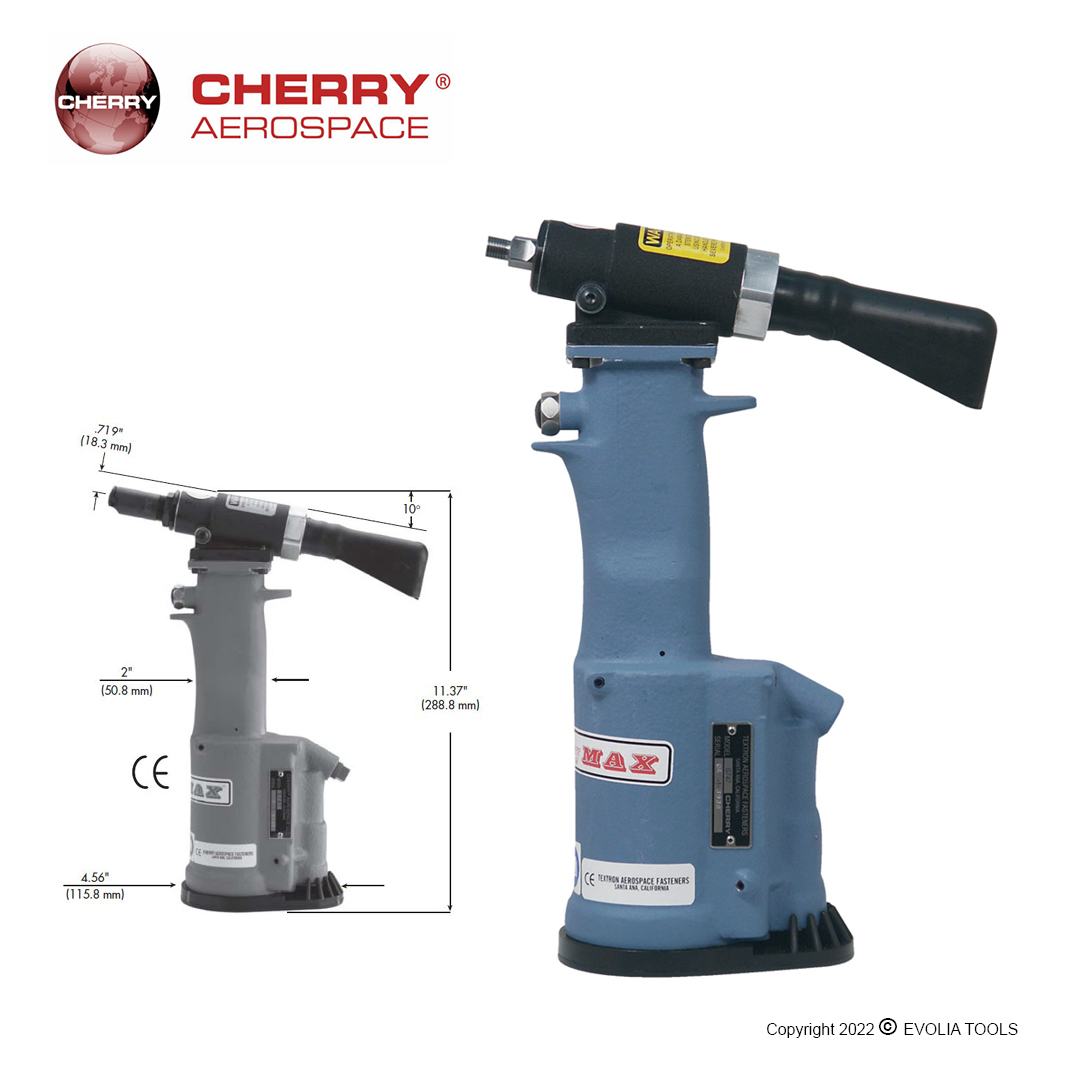

The G747 is a pneumatic-hydraulic tool designed specifically for installation of CherryMAX®rivets and nut-plate rivets.

Its durable, all metal housing makes this tool ideal for use in rugged shop environments. It has many ergonomic features:

light weight, comfortable fit in the operators hand, and operation in any position with one hand.

This tool utilizes straight, offset and right-angle pulling heads, all of which can install -4, -5, and -6 diameter CherryMAX®bulb type rivets in all head styles, materials and grip lengths.

Extensions are available for extending the pulling heads to reach limited access areas.

Specifications

Air Pressure 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.

Stroke .437 inch (11.1 mm)

Pulling Force 2100 lbs (9.34 kN) @ 90 PSI (6.2 bar)

Cycle Time Approximately one second

Weight 3.5 lbs (1.59 kg)

Noise Level 71 dB (A)

Vibration less than 2.5 m/s2

Air Consumption .09 SCF/cycle (2.55 L/cycle)
