PT4500 Riveter for Blind Bolt (MS90353/54 and MS21140/41 U&S Type)

Back to results

PT4500 Riveter for Blind Bolt (MS90353/54 and MS21140/41 U&S Type)

From $1,852.75

The New, Higher Capacity PT-4500 Cordless Blind Riveter offers the sheet metal technician the capability for installation of most all 1/4” diameter blind rivets.

The New, Higher Capacity PT-4500 Cordless Blind Riveter offers the sheet metal technician capability for installation of most all 1/4” diameter blind rivets while retaining all the features of the PT-4000 with respect to size, weight and versatility.

Powered by a slide on 18 VDC Li-Ion battery pack with fuel gage, the PT-4500 brushless motor drives a mechanical ball screw gear system that provides capability for the most demanding applica-tions. With its rapid extended stroke capability the tool is compa-rable to most all air operated riveters, thereby optimizing cycle time between any blind rivet installation. Weighing less than 5 lbs with the standard nose assembly in place, sheet metal artisans will immediately find this riveter to offer the ultimate in overall perfor-mance and reliability.

The PT-4500 Kit includes the tool, 1 each battery pack and dual voltage battery charger.

Standard Configuration

RIVET TYPES For CherryMax & Pop Rivets Configuration

  • xxx
  • xxx
  • xxx




CherryMax & Pop Rivets Configuration

RIVET TYPES For CherryMax & Pop Rivets Configuration

  • xxx
  • xxx
  • xxx




MS90353/54 “U” & “S” Type
Blind Bolt Configuration

RIVET TYPES For Blind Bolt Configuration

  • xxx
  • xxx
  • xxx




CherryMax Pulling Head Configuration

RIVET TYPES For CherryMax Pulling Head Configuration

  • xxx
  • xxx
  • xxx

Specifications for PT-4500

Pulling Force:
5,000

lbs.Stroke:
0.984”

Dimensions:
11.5” H x 12” L x 3.25” W

Power Source:
2.1 Ah, 18vdc Li-Ion Battery Charger

Source:
Dual Voltage
120 volt, 60Hz
220 volt, 50 Hz

Charger Cycle Time:
40

Minutes Optimal Operating Temp.
50 to 122°F

Housing Material:
Impact Resistant
Glass Filled Nylon

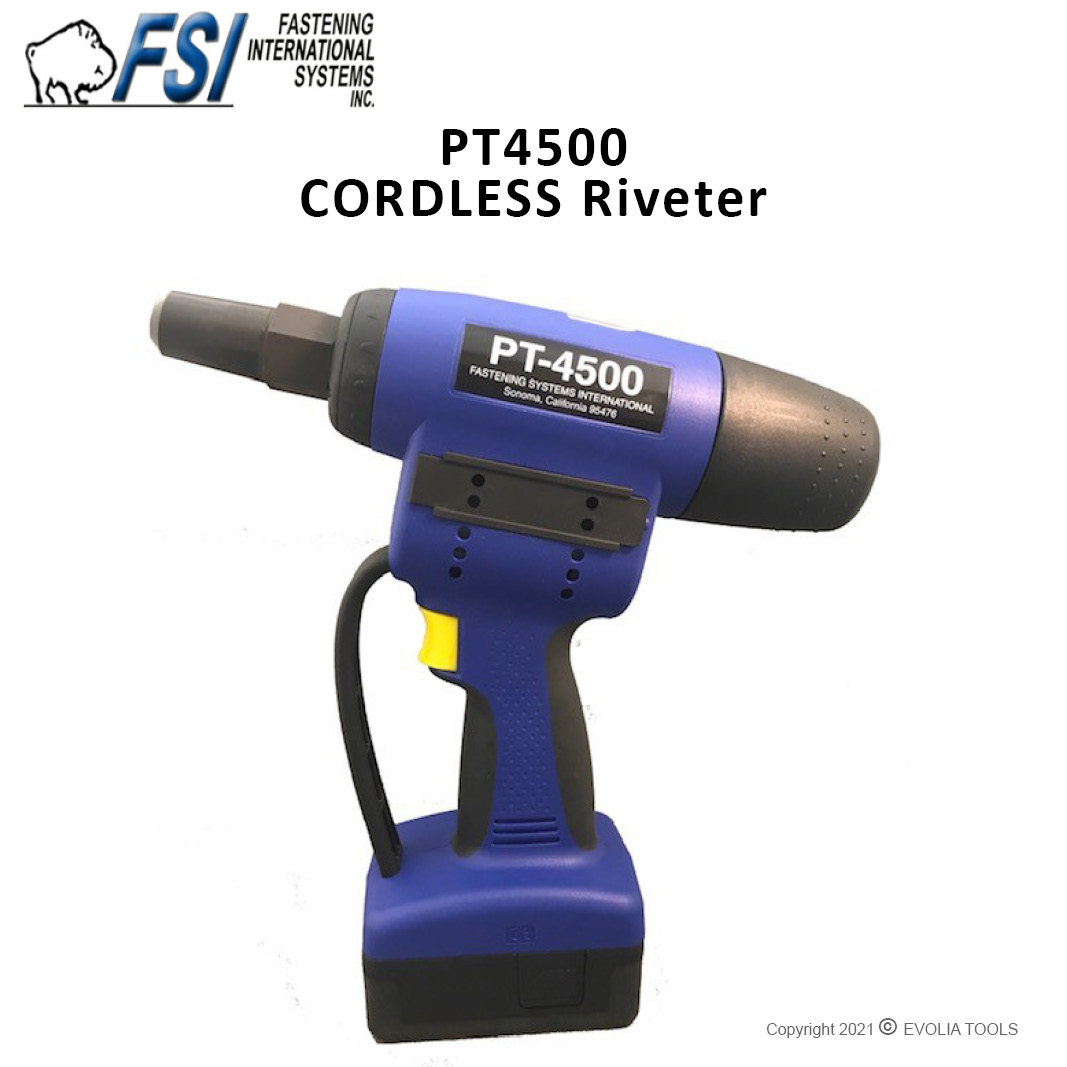

PT-4500 Cordless Blind Riveter

for CHERRYMAX® & Blind Bolts

References

The New, Higher Capacity PT-4500 Cordless

Blind Riveter offers the sheet metal technician

capability for installation of most all 1/4” diameter blind rivets while retaining all the features of the PT-4500 with respect to size, weight and versatility.

Powered by a slide on 18 VDC Li-Ion battery pack with fuel gage, the PT-4500 brushless motor drives a mechanical ball screw gear system that provides capability for the most demanding applications. With its rapid extended stroke capability the tool is comparable to most all air operated riveters, thereby optimizing cycle time between any blind rivet installation. Weighing less than 5 lbs with the standard nose assembly in place, sheet metal artisans will immediately find this riveter to offer the ultimate in overall performance and reliability.

The PT-4500 Kit includes the tool, 1 each battery pack and dual voltage battery charger.
