ZT331 Microstop Countersink Cage Shaft Thread 3/8″-24

Evolia Tools > Products > MICROSTOP COUNTERSINK CAGES > MICROSTOP CAGES > ZT331 Microstop Countersink Cage Shaft Thread 3/8″-24
Back to results
ZT331 series 01
  • ZT331 series 01
  • ZT331 series 02
  • ZT331 series 03
  • ZT331 series 04

ZT331 Microstop Countersink Cage Shaft Thread 3/8″-24

From $259.74

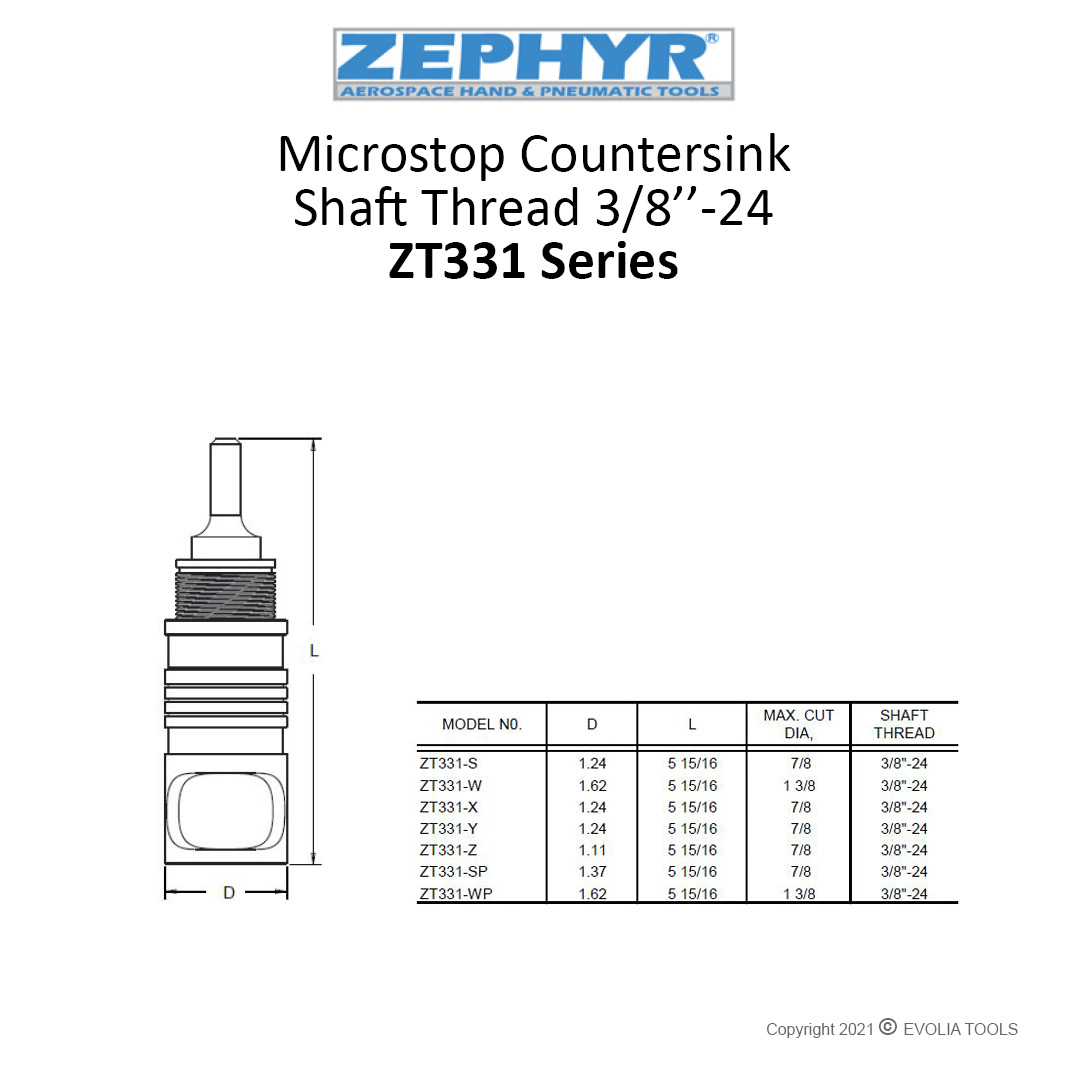

The ZT331 Series has a Shaft Travel 1/2″ and can hold a Max Cutter Diameter of 1-3/8″

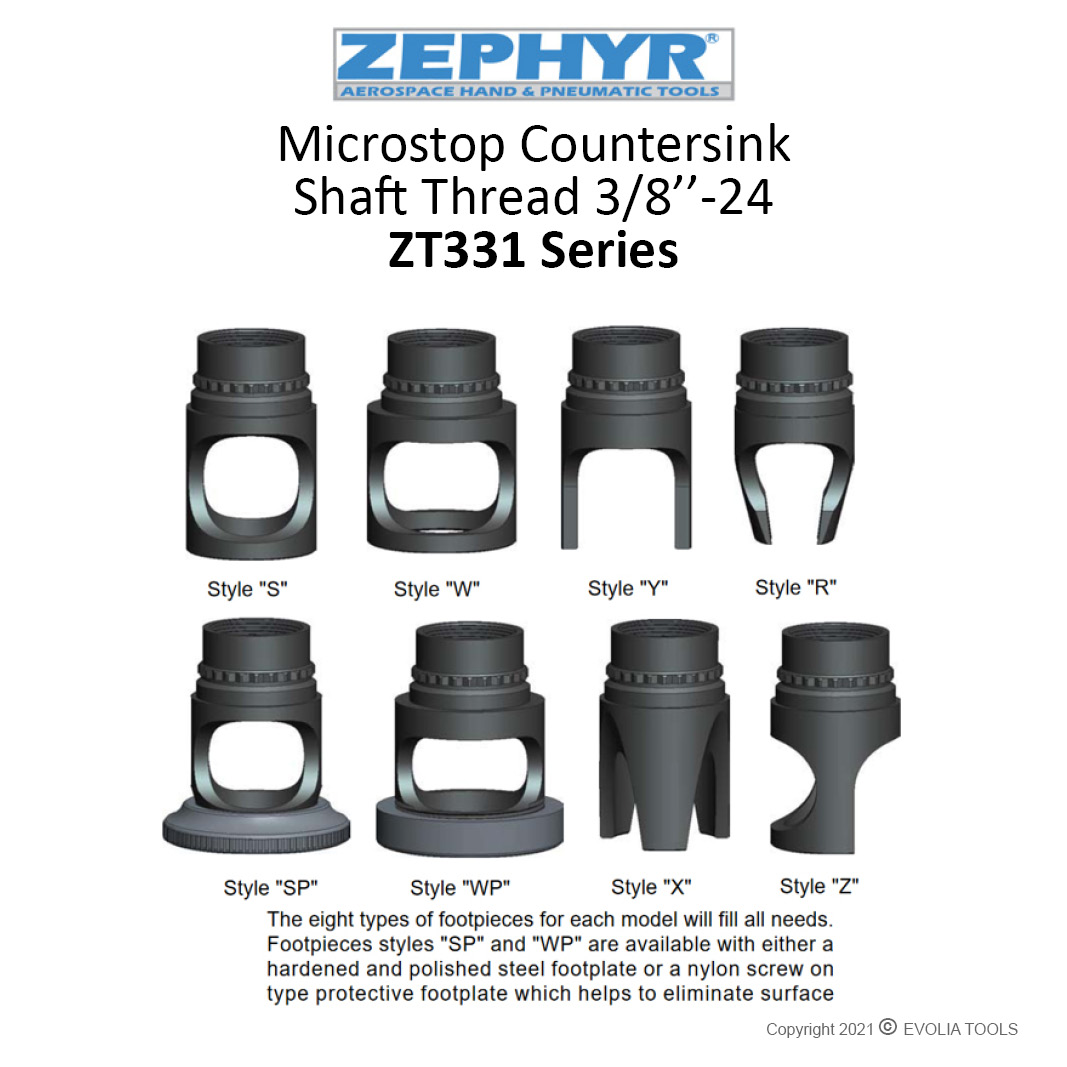

The eight types of footpieces for each model will fill all needs.

Footpieces styles “SP” and “WP” are available with either a hardened and polished steel footplate or a nylon screw on type protective footplate which helps to eliminate surface damage.

All Zephyr Microstop Countersinks have the same basic design and adjustment features. All are precision machined and designed for continuous high speed, heavy duty operation without overheating.

Type for every use :

– SIMPLICITY
– ACCURACY
– DEPENDABILITY

Choose Footpiece Style: *

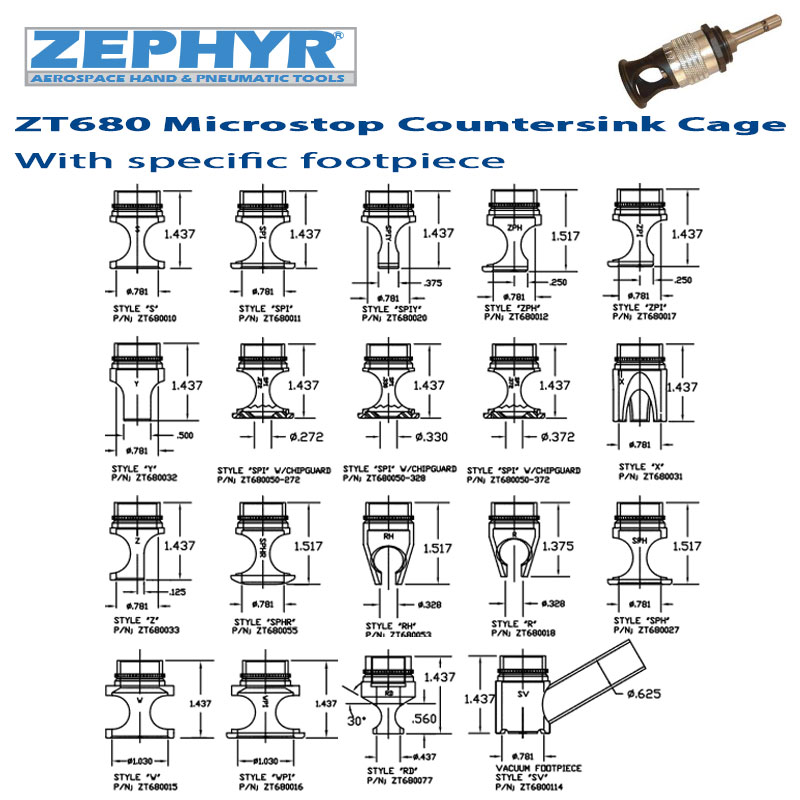

Please zoom on the picture to find the footpiece that fits your needs and find it on the list below

IF NEEDED (WP AND SP) CHOOSE YOUR FOOTPLATE

Footpieces styles “SP” and “WP” are available with either a
hardened and polished steel footplate or a nylon screw on
type protective footplate which helps to eliminate surface, for other footpieces please check NONE.

Categories: , ,

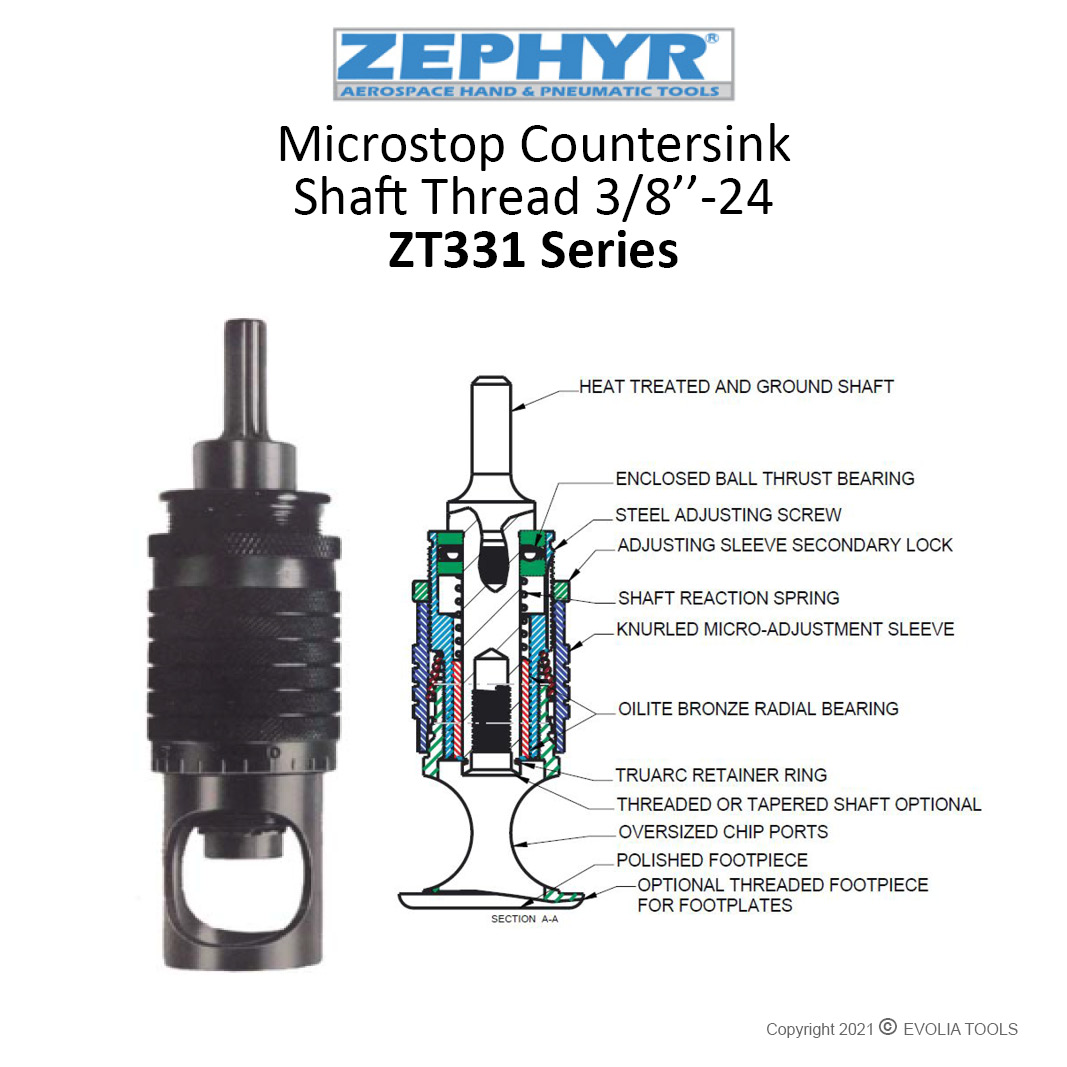

Features Include

  • Heavy duty – Compact size.
  • Full ball bearing design supports all radial and thrust loads at speeds up to 10,000 rpm.

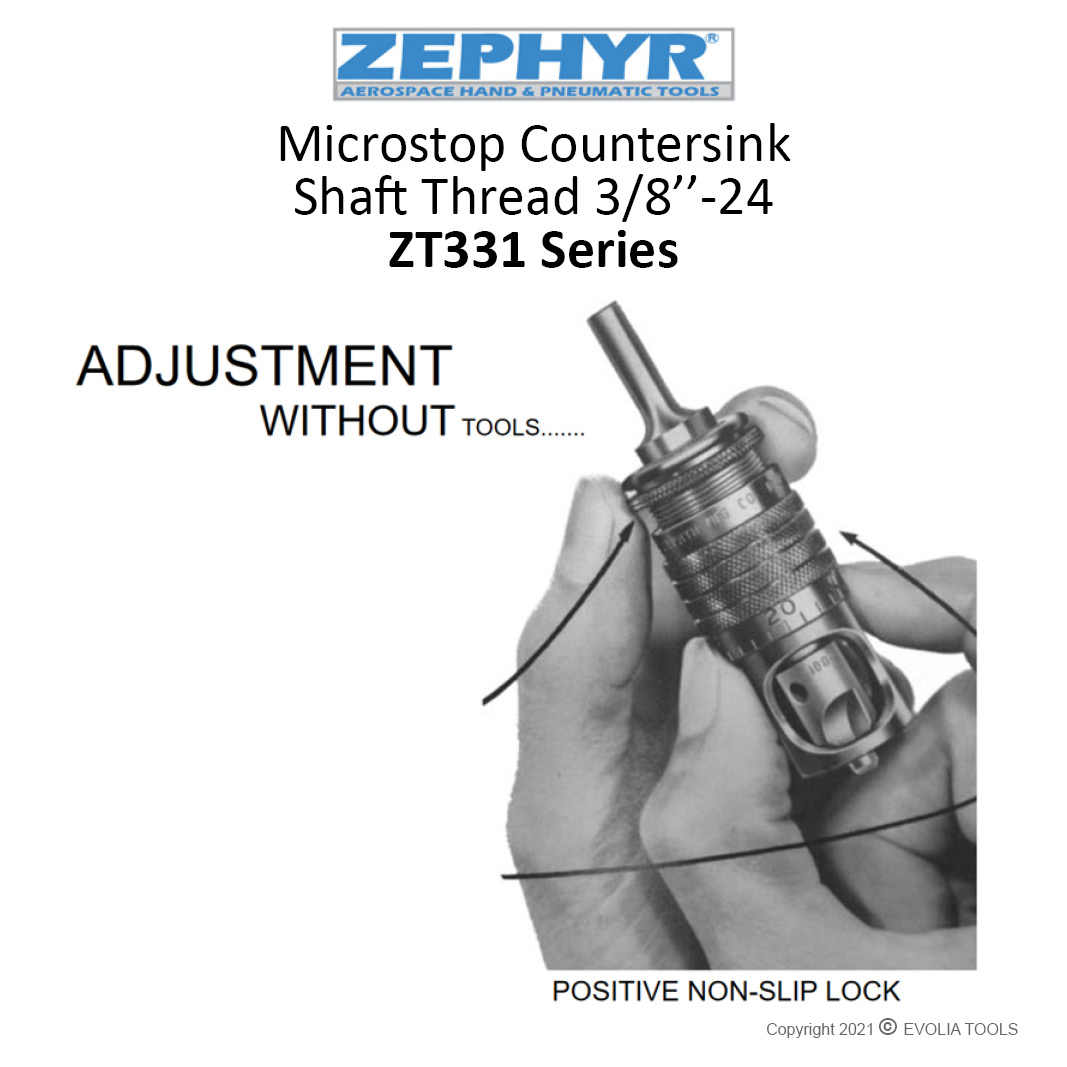

  • .0005 inch incremental depth adjustment.
  • Fail safe positive stop design insures accurate repeatability and eliminates any possibility of work piece damage.
  • Built-in felt dust shield eliminates composite/ graphite dust contamination of the radial ball bearings, significantly extending product life.
  • 1/4″ shaft travel
  • Improved thrust system, significantly increases the run time between adjustments and product life.
  • Left hand threaded hex lock ring eliminates any possibility of inadvertent resetting of primary adjustment.
  • Available with standard 1/4-28 and on request 6mm, internally threaded shafts.
  • 3/4″ diameter cutter capacity with standard “‘S” footpieces and 1″ cutter capacity with wide “W” footpieces.



ZEPHYR Microstop Countersink Cages, Countersink Cutters, and Accessories

Download File
